IMU200B-A0

DESCRIPTION

-------------------------------------------------------------------------------------------------------------------------

The IMU200B-A0 is an inertial measurement unit (IMU) based on micromachining technology (MEMS) with built-in

high-performance MEMS gyroscope and MEMS accelerometer, which outputs 3 angular velocities and 3 accelerations.

The utility model has the advantages of high reliability and strong environmental adaptability. By matching different

software, the product can be widely used in tactical and industrial UAV, smart ammunition, seeker and other fields.

FEATURES

----------------------------------------------------------------------------------------------------------------------------

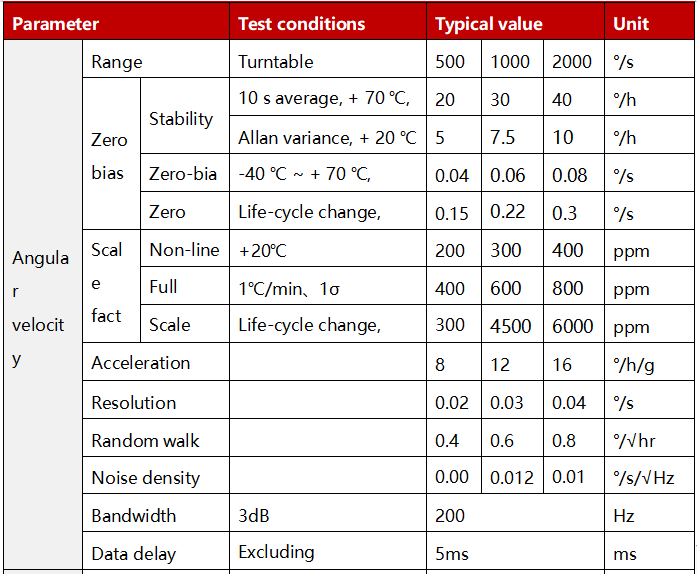

1) Three-axis digital gyroscope:

A)  ± 500º/s (Max: 2000 °/s) dynamic measurement range;

B)  Zero bias stability: 20 °/H (GJB, 10s), 5 °/H (ALLAN);

2) Triaxial digital accelerometer:

A)  ± 16 G dynamic measuring range;

B)  Bias stability: 1mg (GJB, 10s), 0.2: mg (ALLAN);

3) High reliability: MTBF > 20000h;

4) Guaranteed accuracy within the full temperature range (-40 ℃ ~ 80 ℃):

built-in high-performance temperature calibration and compensation algorithm;

5) Suitable for working under strong vibration conditions

6) Overload resistant up to 20000 G

7) Interface 1-way RS422

8) National production design

APPLICATION

----------------------------------------------------------------------------------------------------------------------------

●UAV/AUV/Helicopter     ●Tactical nuclear weapons    ●Aeronautics and astronautics

●Integrated navigation system     ●inertial platform stabilizing   ●Vehicle navigation
