16488H Inertial Measurement Unit
16488H Inertial Measurement Unit
The 16488H-A inertial measurement unit is a complete inertial system with a built-in three-axis gyroscope and a three-axis accelerometer, which is used to measure the three-axis angular rate, acceleration and other parameters of the carrier, and output the data after error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation, etc.) through SPI according to the communication protocol.
measuring range:±450º/s
Bias instabilit Allan variancey:0.3º/h
Bias stability:10º/s
Random walk:0.15º/√h
……
DESCRIPTION
-------------------------------------------------------------------------------------------------------------------------
The 16488H-A inertial measurement unit is a complete inertial system with a built-in three-axis gyroscope and a
three-axis accelerometer, which is used to measure the three-axis angular rate, acceleration and other parameters of
the carrier, and output the data after error compensation (including temperature compensation, installation
misalignment angle compensation, nonlinear compensation, etc.) through SPI according to the communication protocol.
APPLICATION
----------------------------------------------------------------------------------------------------------------------------
●UAV/AUV/Helicopter ●Tactical nuclear weapons ●Aeronautics and astronautics
●Integrated navigation system ●inertial platform stabilizing ●Vehicle navigation

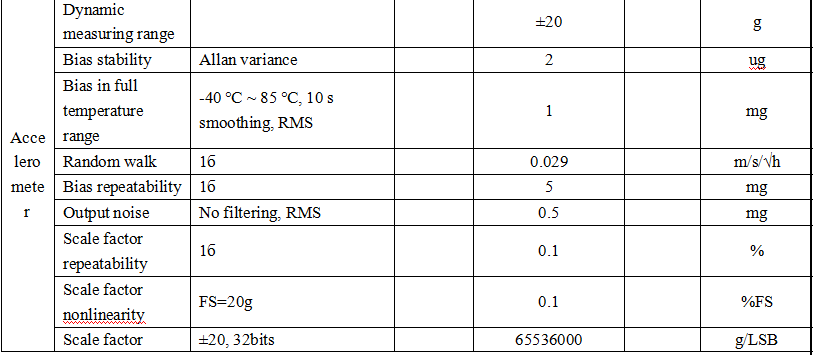

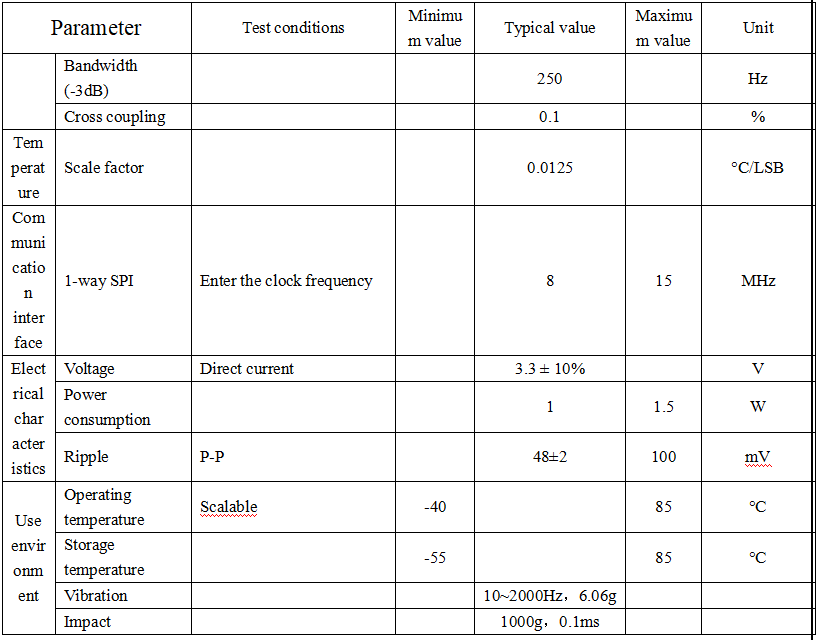

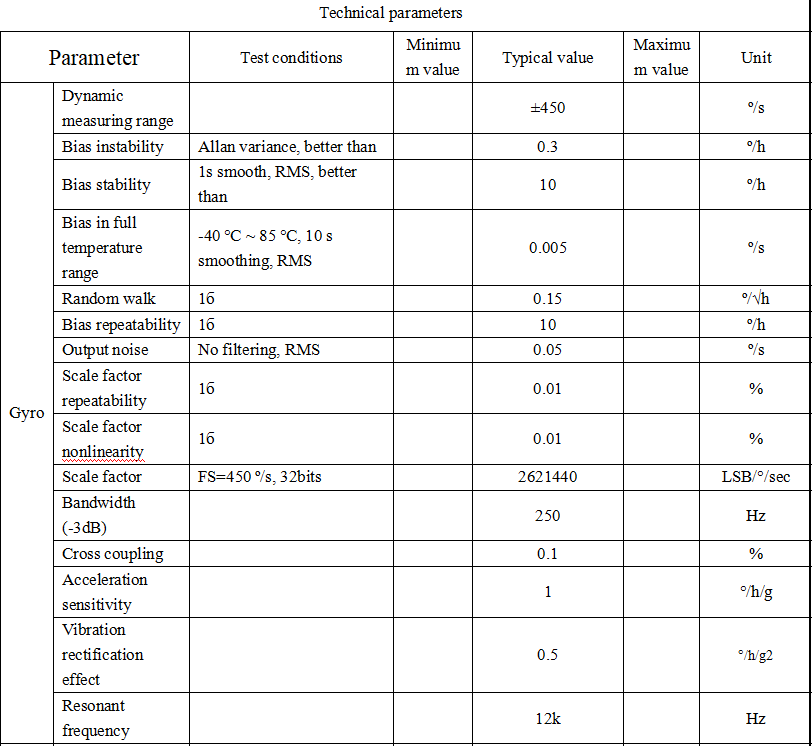

Technical Parameter
16488H Inertial Measurement Unit
PARAMETER

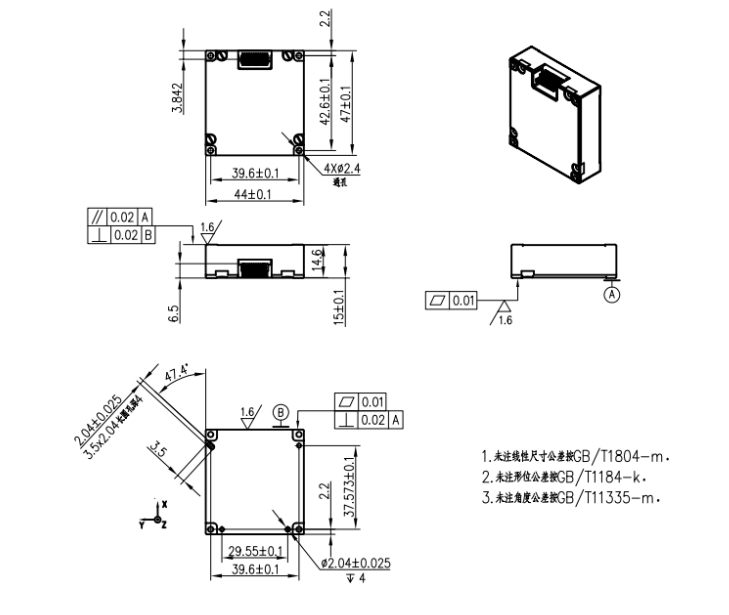

DIMENSION
